Description
PowerLok G2 is a high performance, compact, aluminum alloy interconnect solution utilizing RADSOK® contact technology for EV and Hybrid transportation applications. G2 provides electrical ratings up to 1500VDC and 500A (Continuous @ 80°C Ambient) with IP67/6K9K sealing, 360° shielding, 500 hr salt spray, multiple keying options, straight and right-angle configurations, and up to 3 positions. G2 is available as field assembled connectors which accommodate shielding cable sizes from 35mm² to 120mm² (300/500 Series) and 2.5mm² to 10mm² (60 Series). PowerLok G2 connectors are engineered for a diverse set of applications including electric power distribution (batteries, inverter, PDU, and motors) for automotive, truck, bus, agricultural, construction, and off-road vehicles.
Features & Benefits
NEW CONFIGS: 35mm2 & 95mm2 300 Series (1, 2, and 3 pole, straight and right angle)
NEW RATING: 1500VDC All Configs | 300 and 500 Series
Aluminum Shell, Gray Zinc Plating, 360° Shielding

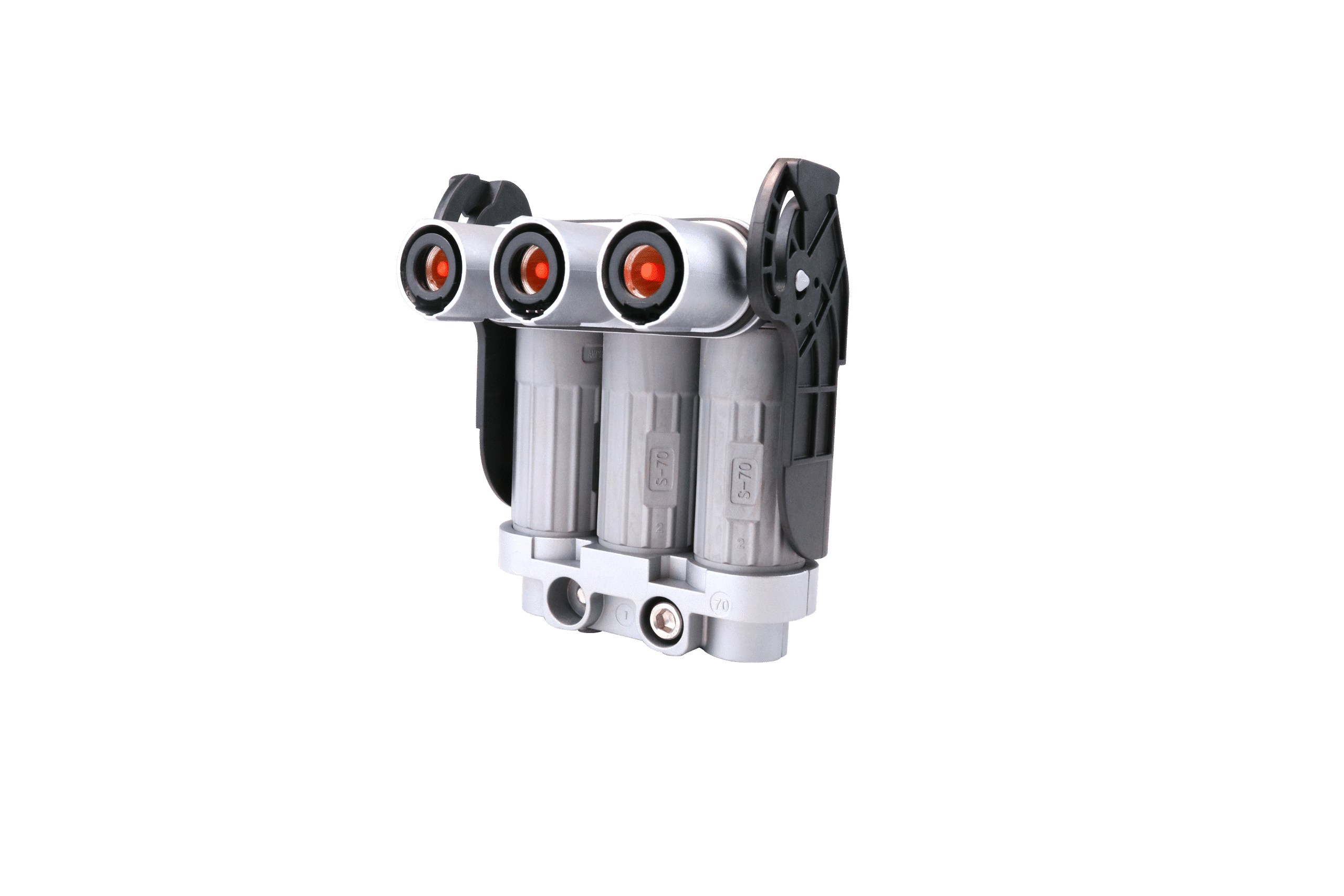

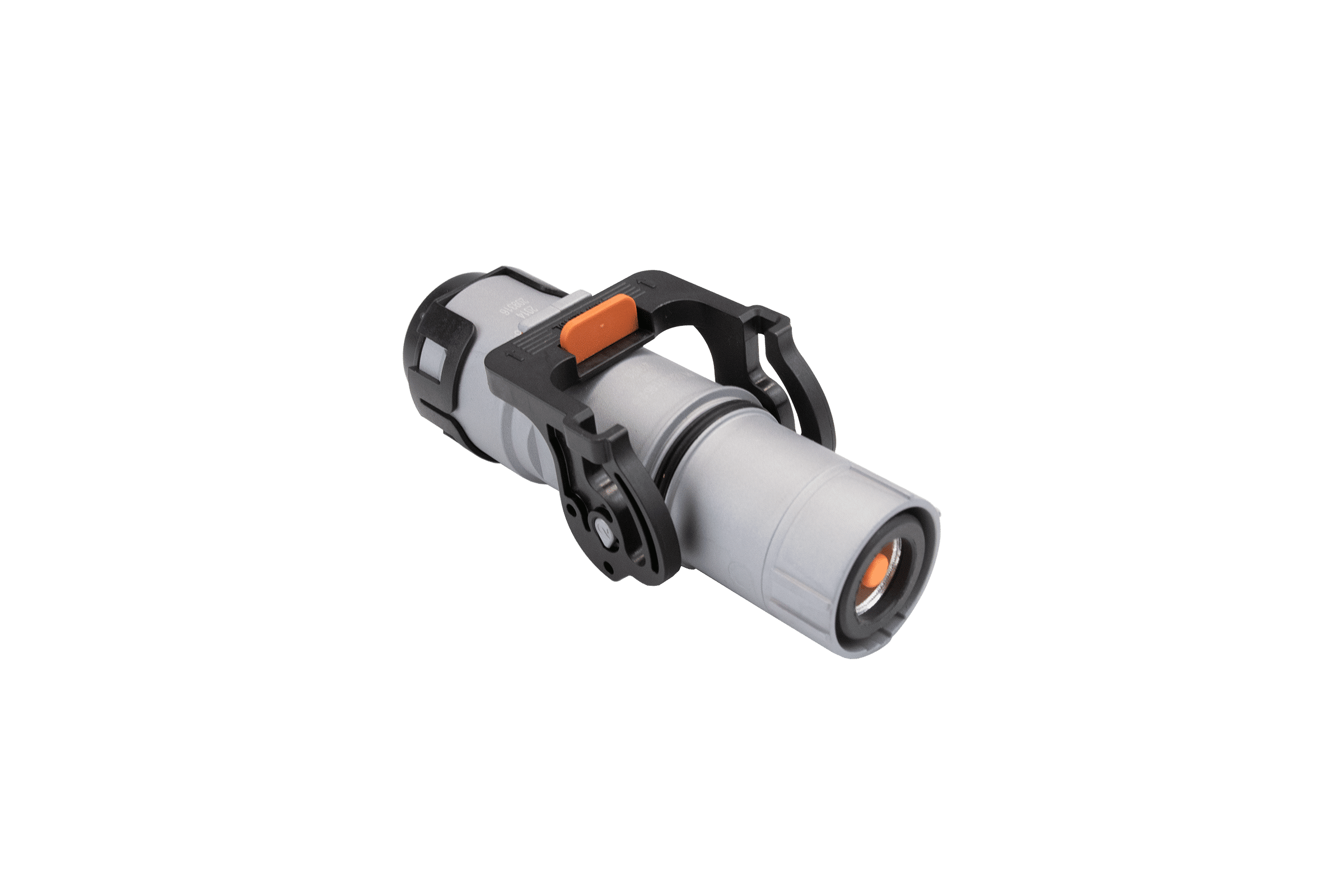

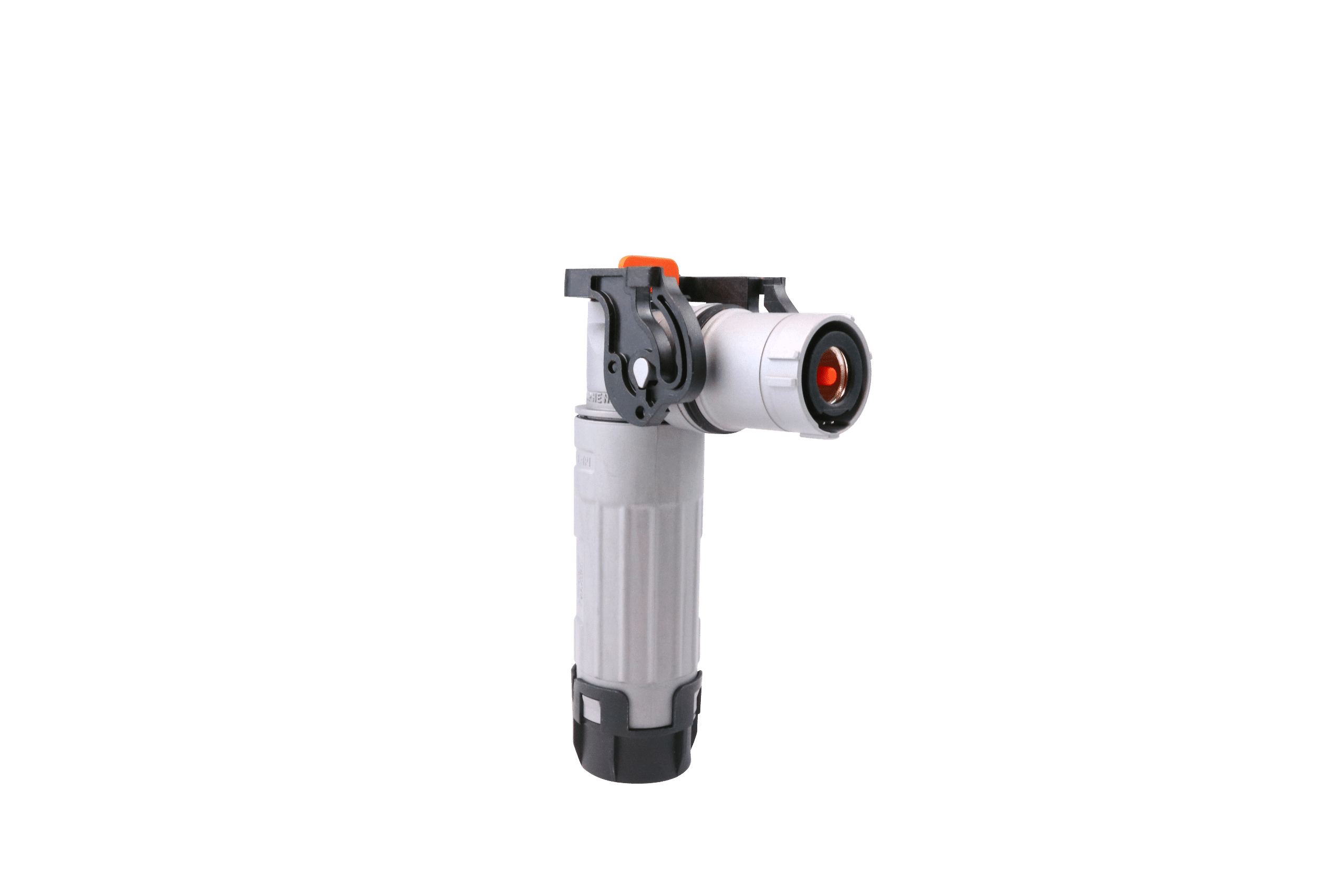

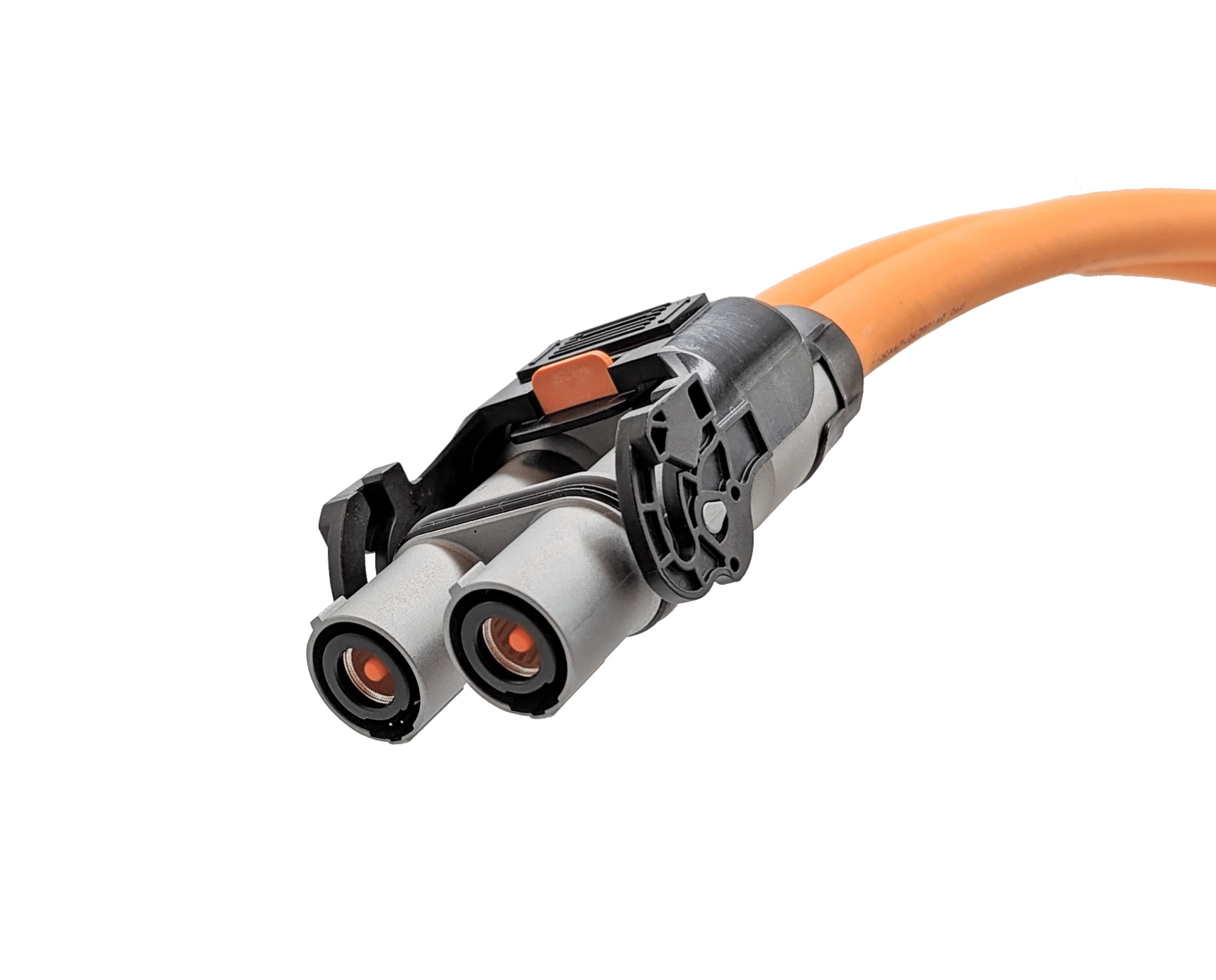

1POS, 2POS, and 3POS Positions Available, Straight and Right Angle
60 Series: 2 pos | 300 Series: 1, 2, 3 pos | 500 Series: 1 pos
High Voltage Inter Lock (HVIL) & Multiple Keys: 1POS & 2 POS (X,Y,U,V,W,T keys) & 3POS (X,Y keys)

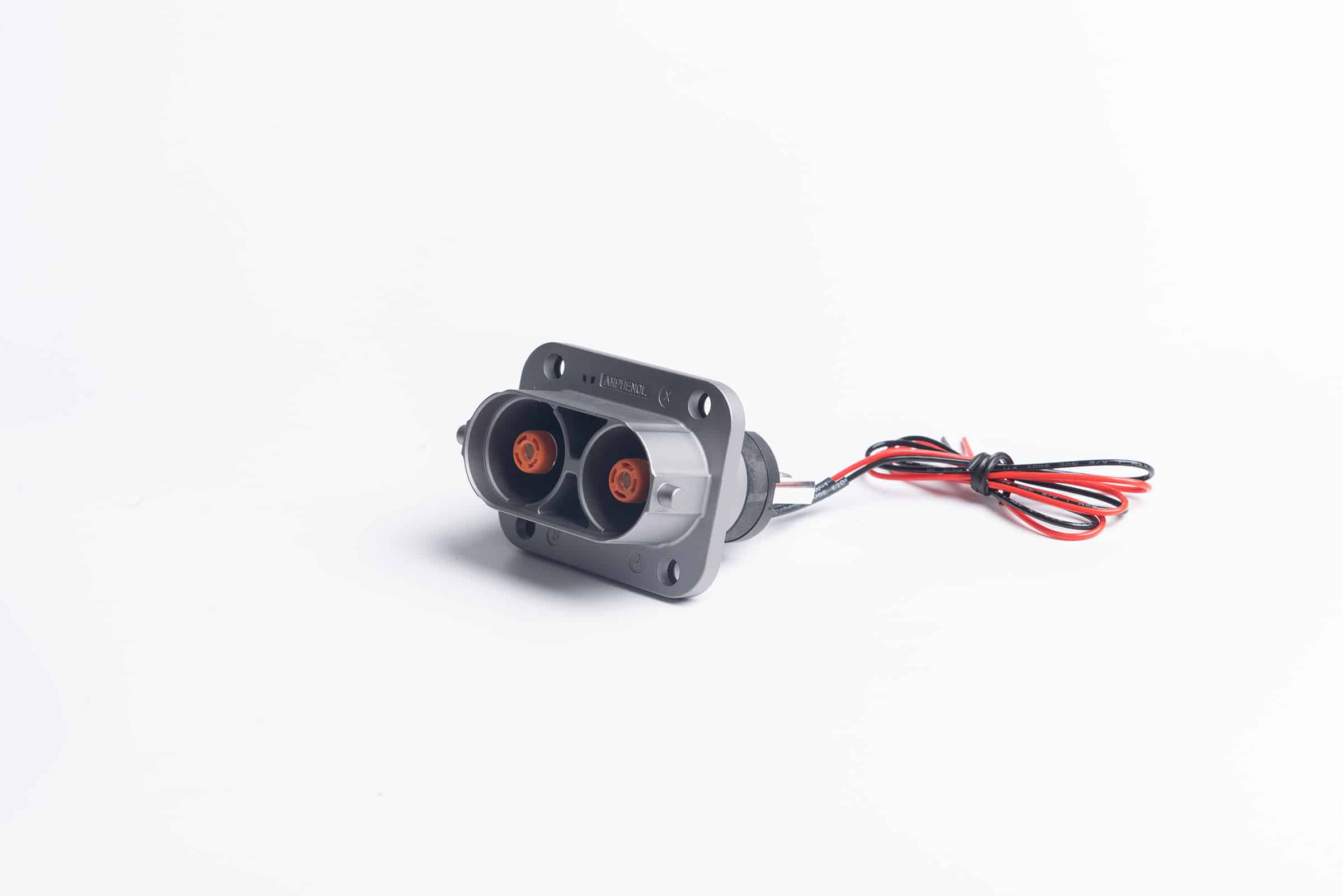

Busbar, Threaded Stud, Pin, Punch Nut, and Custom Lug options for Receptacles
RADSOK contact technology
RoHS/Reach compliant
Updated design, improved HVIL, Vibe, and Shielding performance
Visit Product Site
Product Category
Circular Connectors
